Lenovo PSREF Produktdetails

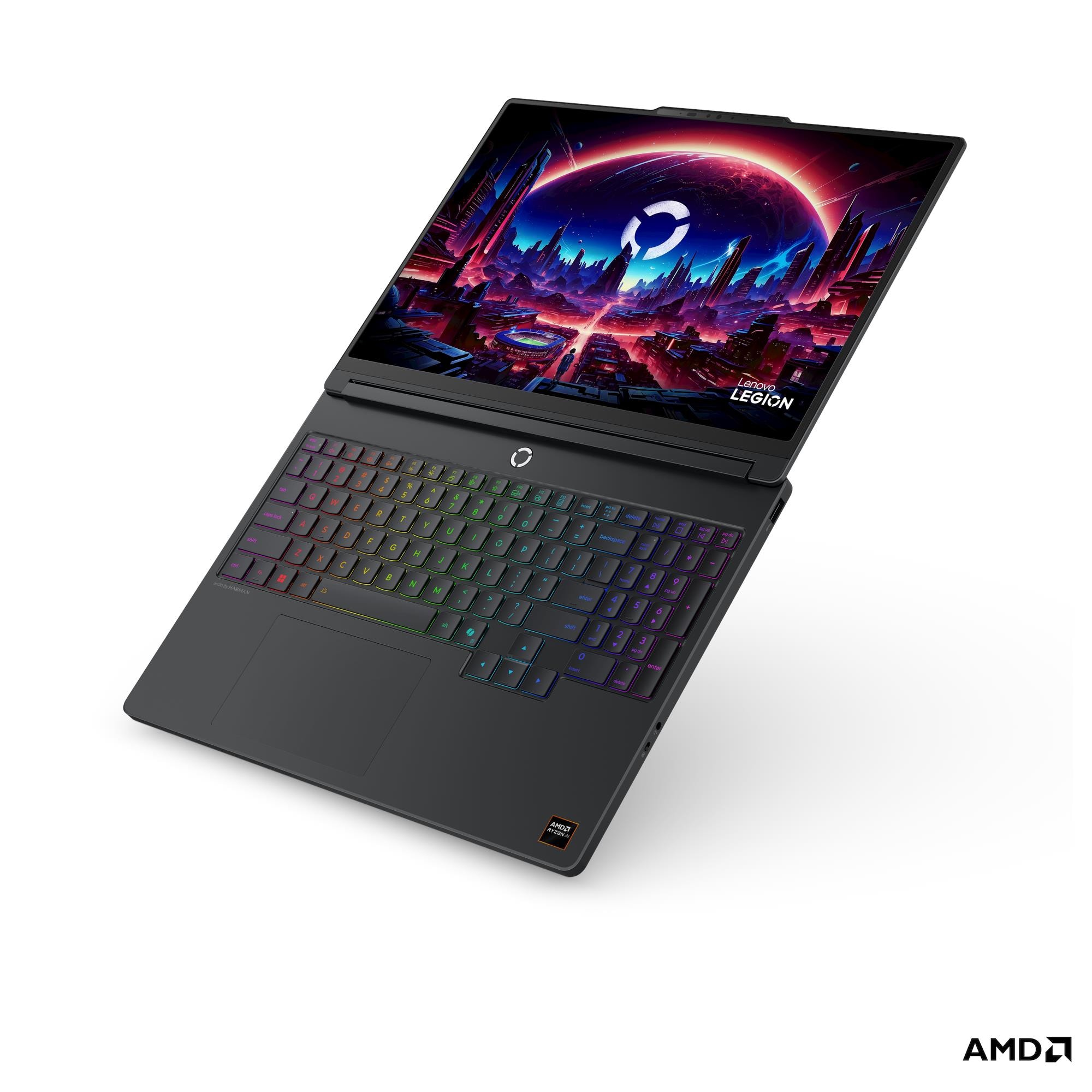

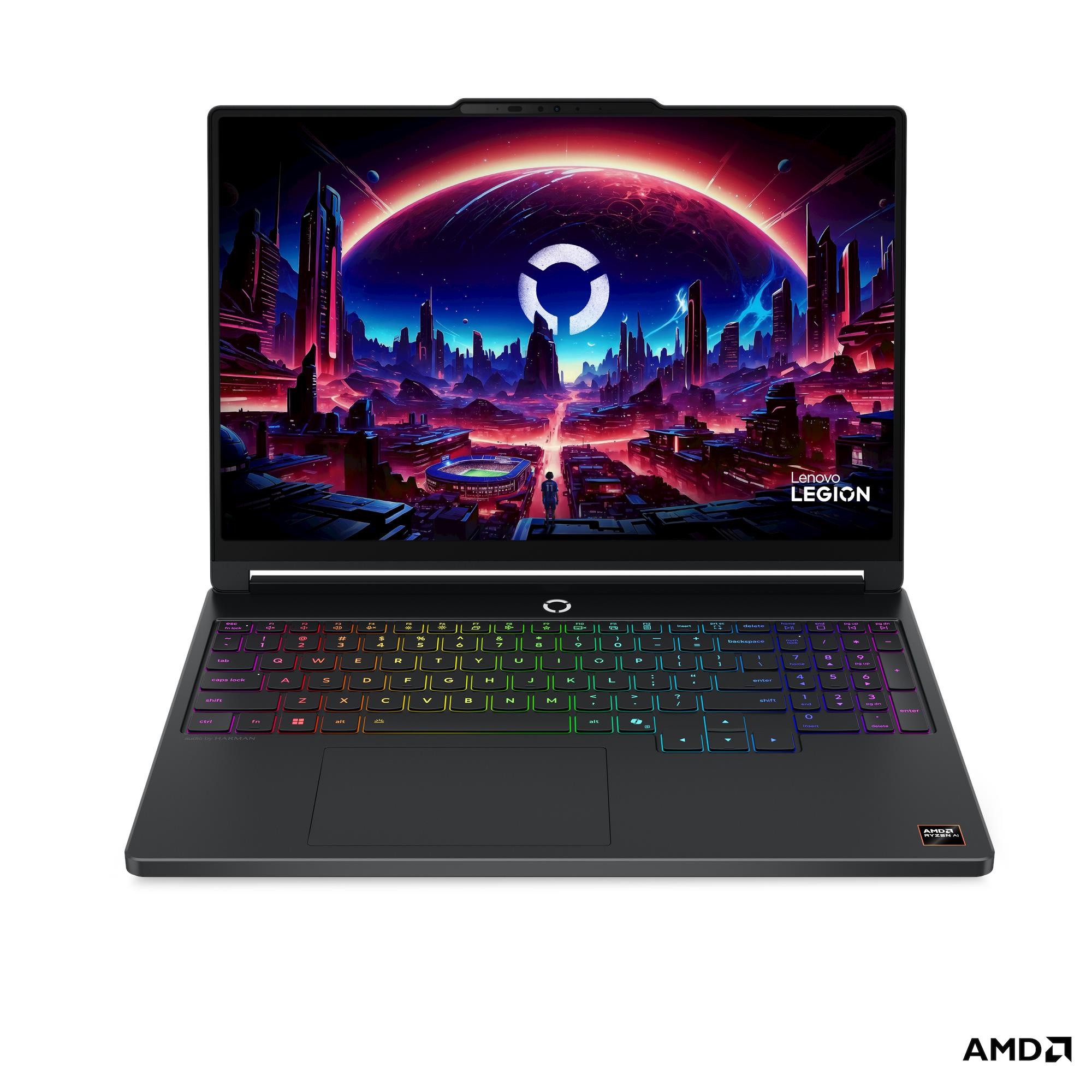

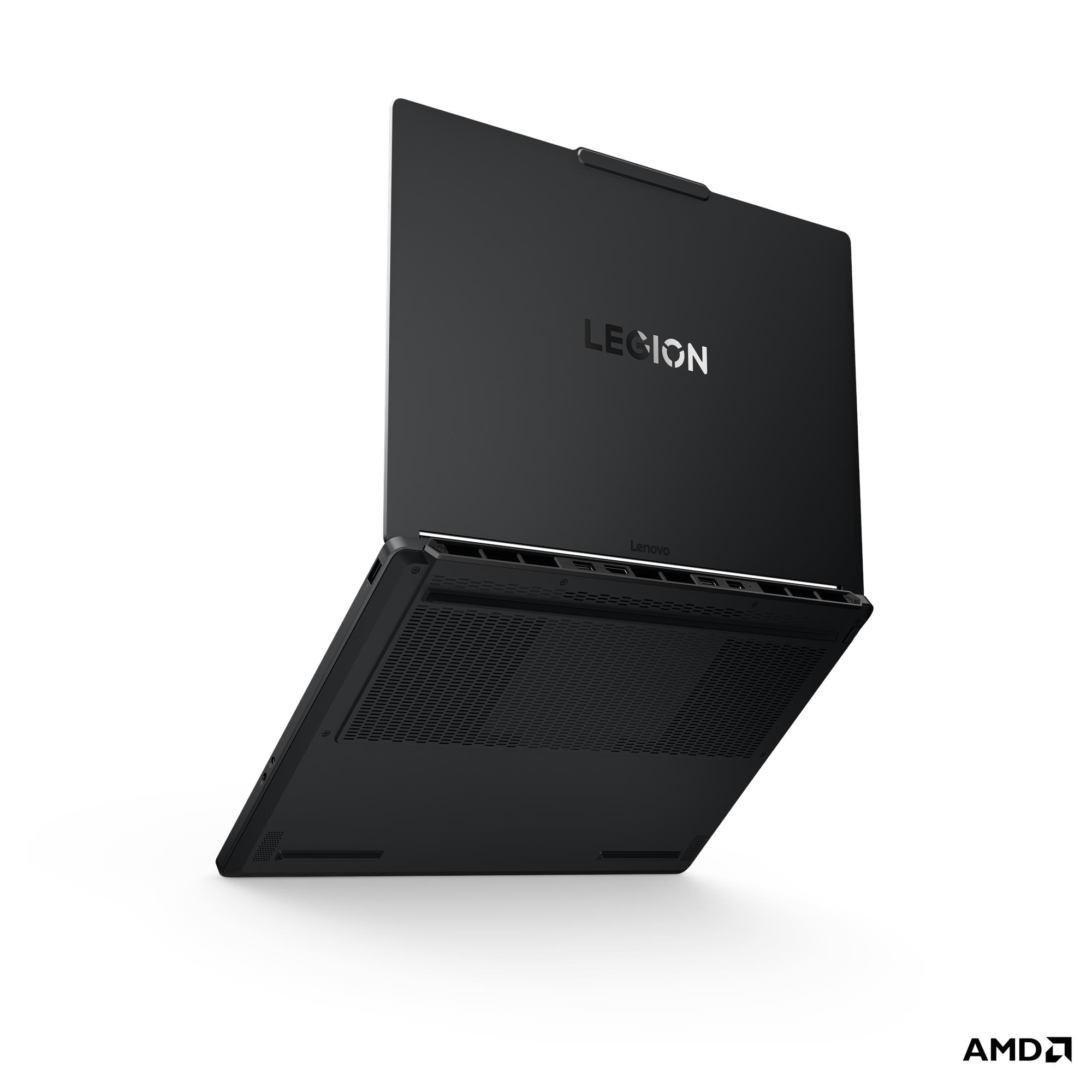

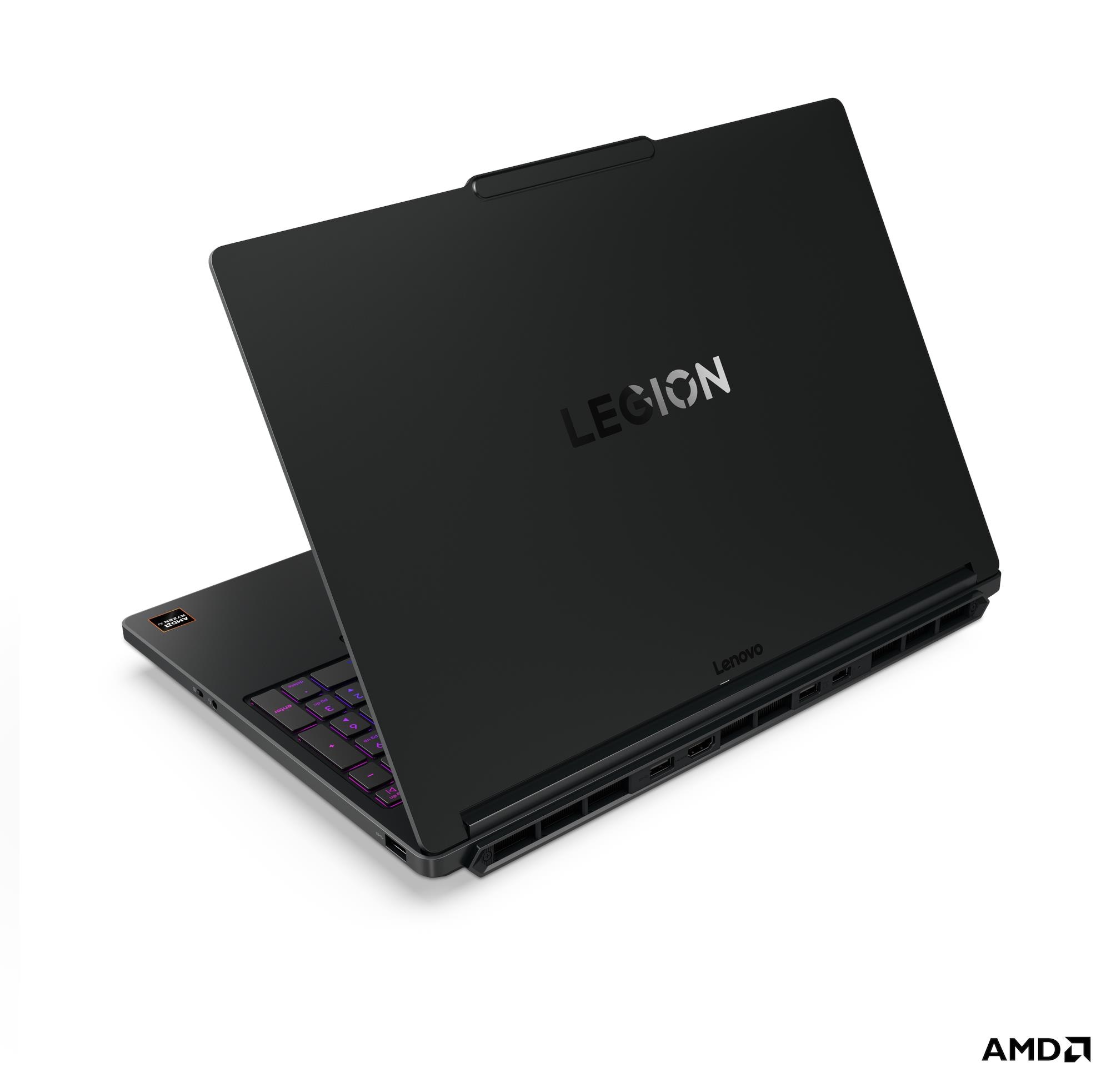

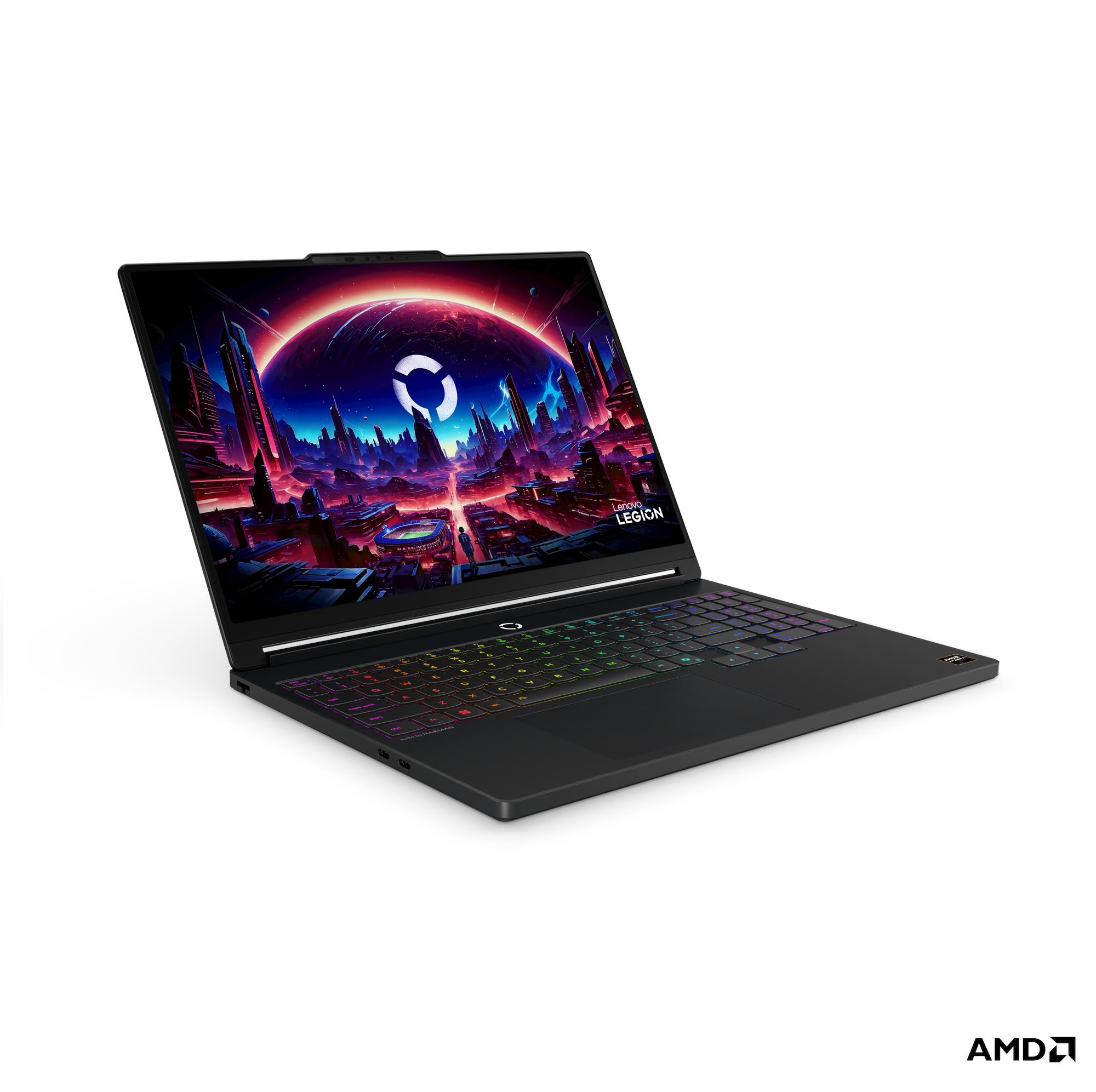

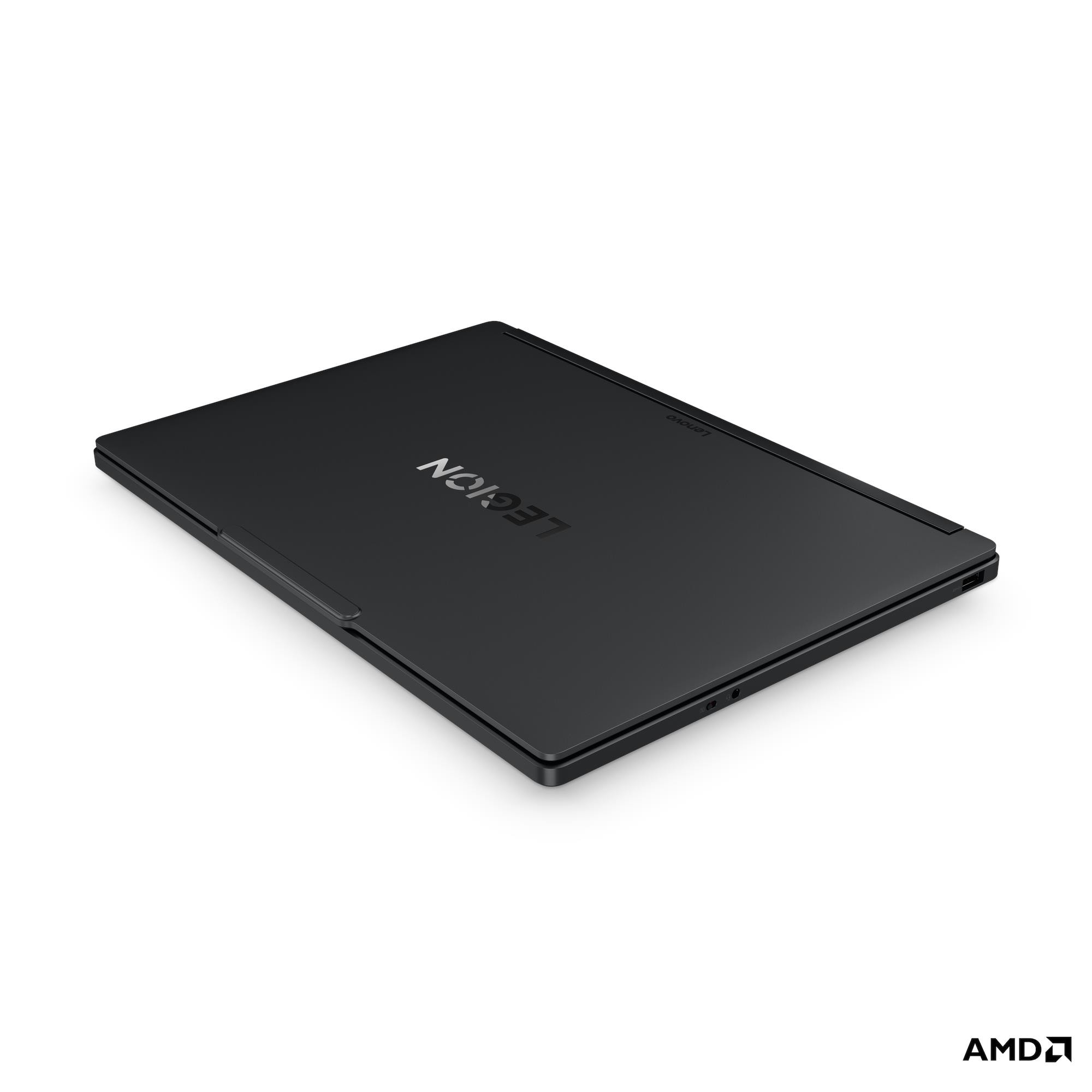

Lenovo Legion 5 15AGP11
Modellnummer: 83Q6001UGE | Technische Daten aus Lenovo PSREF
Lenovo Legion 5 15AGP11: AMD Ryzen AI 7 450 (8C / 16T, 2.0 / 5.1GHz, 8MB L2 / 16MB L3), 2x 16GB SODIMM DDR5-5600, 1TB SSD M.2 2242 PCIe 4.0x4 NVMe, NVIDIA GeForce RTX 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS, Windows 11 Home, German, Case color - Eclipse Black.
Produktbeschreibung aus Lenovo PSREF
- AMD Ryzen AI 7 450 (8C / 16T, 2.0 / 5.1GHz, 8MB L2 / 16MB L3)
- 2x 16GB SODIMM DDR5-5600
- 1TB SSD M.2 2242 PCIe 4.0x4 NVMe
- NVIDIA GeForce RTX 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS
- Windows 11 Home, German
- Case color - Eclipse Black
Leistung & Architektur
| Prozessor | AMD Ryzen AI 7 450 (8C / 16T, 2.0 / 5.1GHz, 8MB L2 / 16MB L3) |
|---|---|
| KI-PC-Kategorie | AI-Powered Gaming PC |
| NPU (KI-Beschleuniger) | Integrated AMD Ryzen AI, up to 50 TOPS |
| Grafikkarte | NVIDIA GeForce RTX 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS |
| Chipsatz | AMD SoC Platform |
Speicher & Laufwerke
| Arbeitsspeicher (RAM) | 2x 16GB SODIMM DDR5-5600 |
|---|---|
| RAM-Steckplaetze | Two DDR5 SODIMM slots, dual-channel capable |
| Max. Arbeitsspeicher | Up to 32GB DDR5-5600 offering |
| Festplatte (Storage) | 1TB SSD M.2 2242 PCIe 4.0x4 NVMe |
| M.2-Steckplaetze | Two M.2 slots • One M.2 2280 PCIe 4.0 x4 slot • One M.2 2280 PCIe 4.0 x2 slot |
| Max. Festplattenkapazitaet | Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 2TB each |
| Kartenleser | No Card Reader |
Display & Design
| Display | 15.3" WQXGA (2560x1600) OLED 1000nits (peak) / 500nits (typical) Glossy, 100% DCI-P3, 165Hz, G-SYNC, DisplayHDR True Black 1000 |
|---|---|
| Touchscreen | None |
| Farbkalibrierung | X-Rite Factory Color Calibration |
| Stifteingabe | Pen Not Supported |
| Tastatur | 1-Zone RGB Backlit, German |
| Gehaeusefarbe | Eclipse Black |
| Gehaeusematerial | Aluminium (Top), PC-ABS (Bottom) |
| Abmessungen (BxTxH) | 344 x 244.5 x 18.95-19.95 mm (13.54 x 9.63 x 0.75-0.79 inches) |
| Gewicht | Starting at 1.87 kg (4.12 lbs) |
Konnektivitaet & Multimedia
| WLAN + Bluetooth | Wi-Fi 7, 802.11be 2x2 + BT5.4 |
|---|---|
| Mobilfunk (WWAN) | WWAN Not Supported |
| Ethernet | 100/1000M (RJ-45) |
| Standard-Anschluesse | 2x USB-A (USB 5Gbps) 1x USB-A (USB 5Gbps), Always On 2x USB-C (USB4 40Gbps), with USB PD 65-100W and DisplayPort 1.4 1x HDMI 2.1, up to 8K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x Ethernet (RJ-45) 1x Slim tip Power connector |
| Docking | Various docking solutions supported via USB-C. For more compatible docking solutions, please visit Docking for Legion 5 15AGP11 |
| Audio-Chip | High Definition (HD) Audio, Realtek ALC3287 codec |
| Lautsprecher | Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio |
| Mikrofon | 2x, Array |
| Kamera | 5.0MP + IR with E-shutter |
| Akku | 80Wh |
| Stromversorgung | 245W Slim Tip (3-pin) |
Software, Sicherheit & Garantie
| Betriebssystem | Windows 11 Home, German |
|---|---|
| Mitgelieferte Software | Office Trial |
| Sicherheits-Chip | Firmware TPM 2.0 Enabled |
| Fingerabdruckscanner | No Fingerprint Reader |
| Weitere Sicherheit | E-shutter IR camera for Windows Hello (facial recognition) |
| Herstellergarantie | 2-year, Courier or Carry-in with 1-year Battery |
| Mitgeliefertes Zubehoer | None |
| Zertifizierungen | ENERGY STAR 9.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant |
| EAN / UPC / JAN | 199274382643 |
| Support-Ende | 2022-02-16 |
| Ankuendigungsdatum | 2026-01-14 |
