Lenovo PSREF Produktdetails

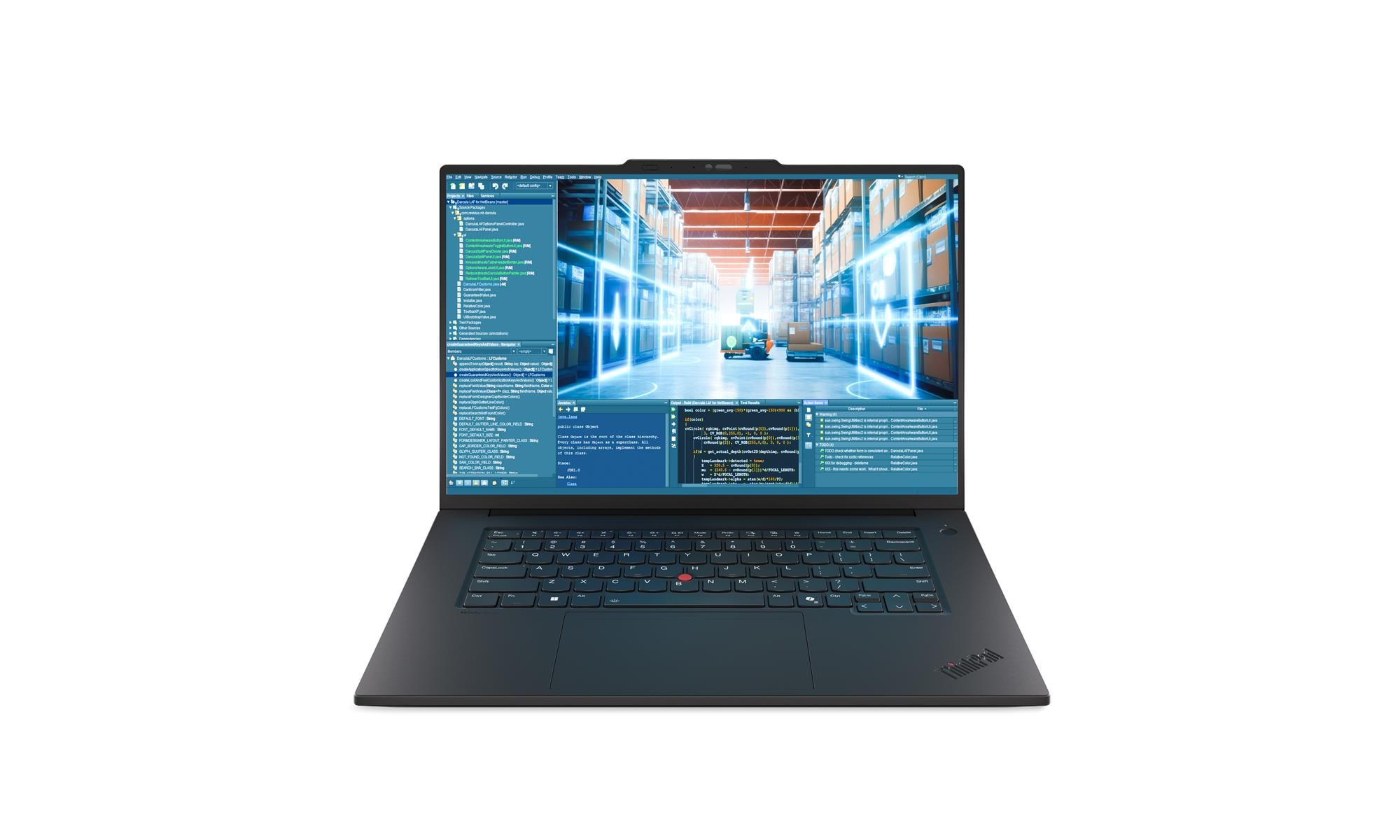

Lenovo ThinkPad T1g Gen 8
Modellnummer: 21TD0002GE | Technische Daten aus Lenovo PSREF
Lenovo ThinkPad T1g Gen 8: Intel Core Ultra 7 255H, 16C (6P + 8E + 2LPE) / 16T, Max Turbo up to 5.1GHz, 24MB Intel Smart Cache, 32GB LPCAMM2 LPDDR5X-7467, 1TB SSD M.2 2280 PCIe 5.0x4 Performance NVMe Opal 2.0, NVIDIA GeForce RTX 5060 8GB GDDR7 Laptop GPU, Windows 11 Pro, German, Case color - Black, 3Y Premier TP WS WHB (CPN), CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects).
Produktbeschreibung aus Lenovo PSREF
- Intel Core Ultra 7 255H, 16C (6P + 8E + 2LPE) / 16T, Max Turbo up to 5.1GHz, 24MB Intel Smart Cache
- 32GB LPCAMM2 LPDDR5X-7467
- 1TB SSD M.2 2280 PCIe 5.0x4 Performance NVMe Opal 2.0
- NVIDIA GeForce RTX 5060 8GB GDDR7 Laptop GPU
- Windows 11 Pro, German
- Case color - Black
- 3Y Premier TP WS WHB (CPN), CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
Leistung & Architektur
| Prozessor | Intel Core Ultra 7 255H, 16C (6P + 8E + 2LPE) / 16T, Max Turbo up to 5.1GHz, 24MB Intel Smart Cache |
|---|---|
| KI-PC-Kategorie | AI PC |
| NPU (KI-Beschleuniger) | Integrated Intel AI Boost, up to 13 TOPS |
| Grafikkarte | NVIDIA GeForce RTX 5060 8GB GDDR7 Laptop GPU |
| Chipsatz | Intel SoC Platform |
Speicher & Laufwerke
| Arbeitsspeicher (RAM) | 32GB LPCAMM2 LPDDR5X-7467 |
|---|---|
| RAM-Steckplaetze | One LPCAMM2 connector, dual-channel |
| Max. Arbeitsspeicher | Up to 64GB (1x 64GB LPCAMM2), upgradable |
| Festplatte (Storage) | 1TB SSD M.2 2280 PCIe 5.0x4 Performance NVMe Opal 2.0 |
| M.2-Steckplaetze | Two M.2 2280 PCIe 4.0 x4 slots |
| Max. Festplattenkapazitaet | Up to two M.2 2280 Gen 5 Performance SSD; up to 8TB, 4TB each |
| Kartenleser | SD Express 7.0 Card Reader |
Display & Design
| Display | 16" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, 60Hz, Low Power, Eyesafe, TÜV Low Blue Light |
|---|---|
| Touchscreen | None |
| Farbkalibrierung | X-Rite Factory Color Calibration |
| Stifteingabe | Pen Not Supported |
| Tastatur | Backlit, German |
| Gehaeusefarbe | Black |
| Gehaeusematerial | Aluminium (Top), Aluminium (Bottom) |
| Abmessungen (BxTxH) | 354.3 × 241.0 × 9.9 / 15.8 (front / rear), 20.6 (maximum) mm 13.95 x 9.49 x 0.39 / 0.62 (front / rear), 0.81 (maximum) inches |
| Gewicht | Starting at 1.84 kg (4.06 lbs) |
Konnektivitaet & Multimedia
| WLAN + Bluetooth | Intel Wi-Fi 7 BE201, 802.11be 2x2 + BT5.4 |
|---|---|
| Mobilfunk (WWAN) | WWAN Not Supported |
| SIM-Karte | No SIM card included (nano‑SIM card slot available) |
| Ethernet | No Onboard Ethernet |
| NFC | No NFC |
| Standard-Anschluesse | 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On 2x Thunderbolt 5, with USB PD 3.1 and DisplayPort 2.1, 140W input / 15W output 1x Thunderbolt 4, with DisplayPort 2.1 and USB PD 3.1, 140W input / 15W output 1x HDMI 2.1, up to 8K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x SD Express 7.0 card reader 1x Kensington Nano Security Slot |
| Optionale Anschluesse | None |
| Docking | Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad T1g Gen 8 |
| Audio-Chip | SoundWire, Cirrus Logic CS42L43 codec |
| Lautsprecher | Stereo speakers, 2W x2, Dolby Atmos |
| Mikrofon | 2x, Array |
| Kamera | 5.0MP + IR with Privacy Shutter and Computer Vision Human Presence Detection on ISP |
| Akku | 90Wh |
| Stromversorgung | 140W USB-C GaN (3-pin) |
Software, Sicherheit & Garantie
| Betriebssystem | Windows 11 Pro, German |
|---|---|
| Mitgelieferte Software | Intel Connectivity Performance Suite + Lenovo AI Now |
| Sicherheits-Chip | Discrete TPM 2.0 Enabled |
| Physische Sicherung | Kensington Nano Security Slot, 2.5 x 6 mm |
| Fingerabdruckscanner | Touch Style, Match-on-Chip, Integrated in Power Button |
| Weitere Sicherheit | Bottom cover tamper detection Camera privacy shutter Computer Vision-based User Presence Sensing on Image Signal Processor (ISP) IR camera for Windows Hello (facial recognition) |
| System-Management | Non-vPro |
| Herstellergarantie | 3-year, Courier or Carry-in with 1-year Battery |
| Garantie-Upgrade | 3Y Premier TP WS WHB (CPN), CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects) |
| Mitgeliefertes Zubehoer | None |
| Zertifizierungen | ENERGY STAR 9.0 EPEAT Gold Registered RoHS compliant TCO Certified, generation 10 |
| Militaerstandard | MIL-STD-810H military test passed |
| EAN / UPC / JAN | 0199272091127 |
| Support-Ende | 2032-04-25 |
| Ankuendigungsdatum | 2025-09-05 |
